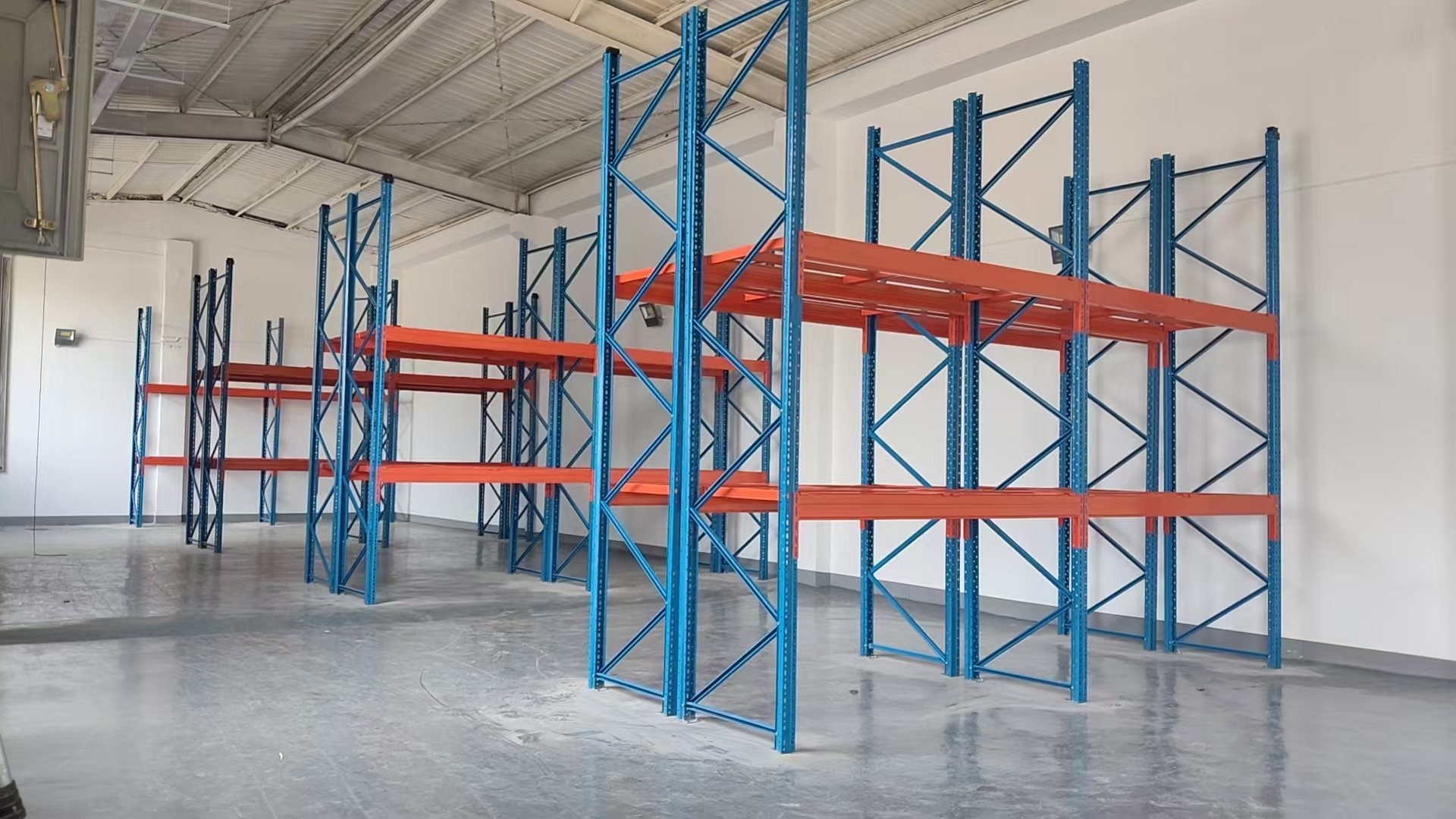

Teardrop pallet racking(Selective pallet racks)Case Study Images

Pallet racking is a heavy-duty industrial storage system designed to stack palletized materials vertically in rows and multiple levels.

It maximizes warehouse vertical space, organizes inventory, and requires forklifts for loading and unloading.Core ComponentsUpright Frames: Vertical steel structures that determine the system's height and depth.Load Beams: Horizontal steel bars that lock into uprights to hold the pallets.Wire Mesh Decking: Safety shelving placed on beams to support varying load shapes and prevent falls.Safety Accessories: Includes column guards, row spacers, and floor anchor bolts for structural stability.

Primary terms: Pallet racking, pallet rack systems, warehouse racks, industrial shelving, heavy-duty storage racks.

Component terms: Racking uprights, pallet rack beams, vertical frames, cross beams, wire mesh decking, safety support bars.

Size Information：Use standard formats:Height & Depth: 12ft upright frames, 42x48 pallet rack, 8-foot racking.Beam Lengths: 8ft pallet rack beams, 96-inch cross beams, 12ft beams.Pallet Sizes: Standard 48x40 pallet storage.

Highlight Weight Capacities & ConditionsCapacity dictates safety, making it a critical search filter:Load limits: Heavy-duty racks, 5000 lbs capacity beams, industrial weight capacity.Material/Condition: Structural steel racks, roll-formed steel, used pallet racking, galvanized outdoor racks.

Common Racking TypesSelective Racking: Most common system：

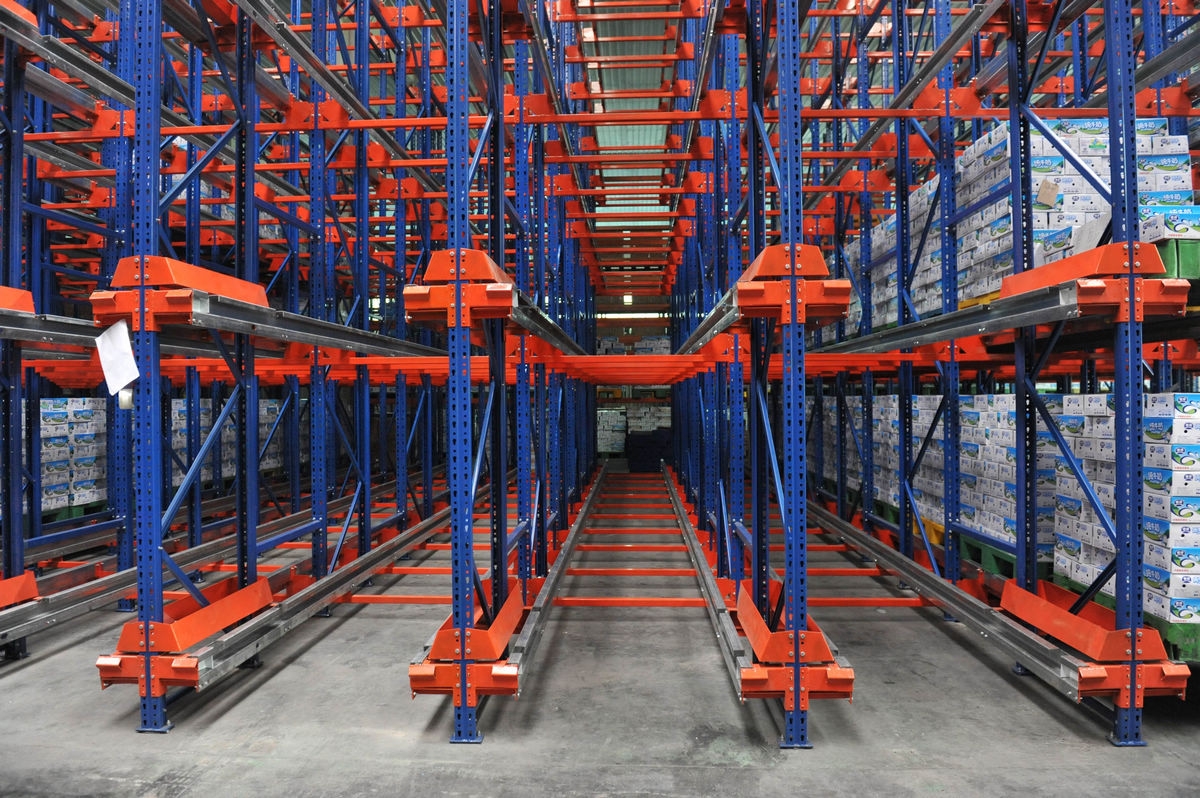

provides direct access to every single pallet.Double-Deep: Stores pallets two deep to increase capacity but requires specialized forklifts.Drive-In / Drive-Through: High-density storage where forklifts drive directly into the racking lanes.Pushback Racking: Pallets sit on inclined wheeled carts;

loading a new pallet pushes the others back.Pallet Flow Racks: Uses rollers and gravity to slide pallets forward on a First-In, First-Out (FIFO) basis.Standard DimensionsStandard Depth: 42 to 48 inches (to fit standard 48x40 inch pallets).Standard Beam Length: 96 or 144 inches (typically holding 2 or 3 pallets per level).Heights: Ranges from 8 feet to over 30 feet, depending on warehouse ceiling clearance.To help you find the right system, what are you looking to do?
