Cantilever Racking（Double Sided）
Heavy-Duty Industrial Cantilever Racking Systems for Long and Bulky Materials – Product Overview: Our heavy-duty industrial cantilever racking systems are the ideal solution for storing long, oversized, or irregularly shaped materials—items that cannot be accommodated by standard pallet racking.
Designed specifically for demanding industrial environments such as lumber yards, steel processing and distribution centers, and manufacturing plants, the system eliminates front uprights that would otherwise obstruct forklift operations.

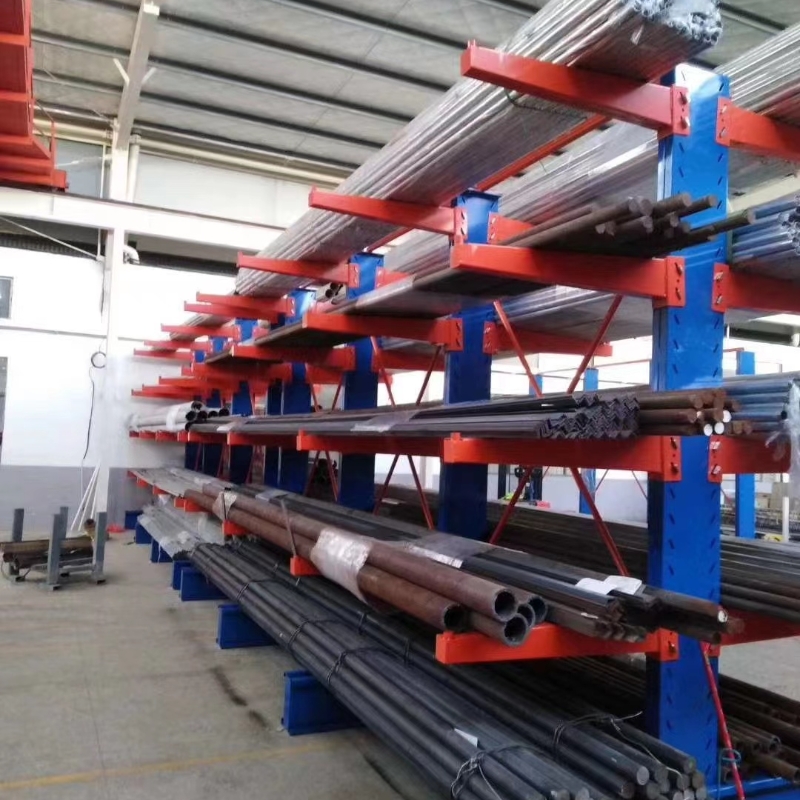

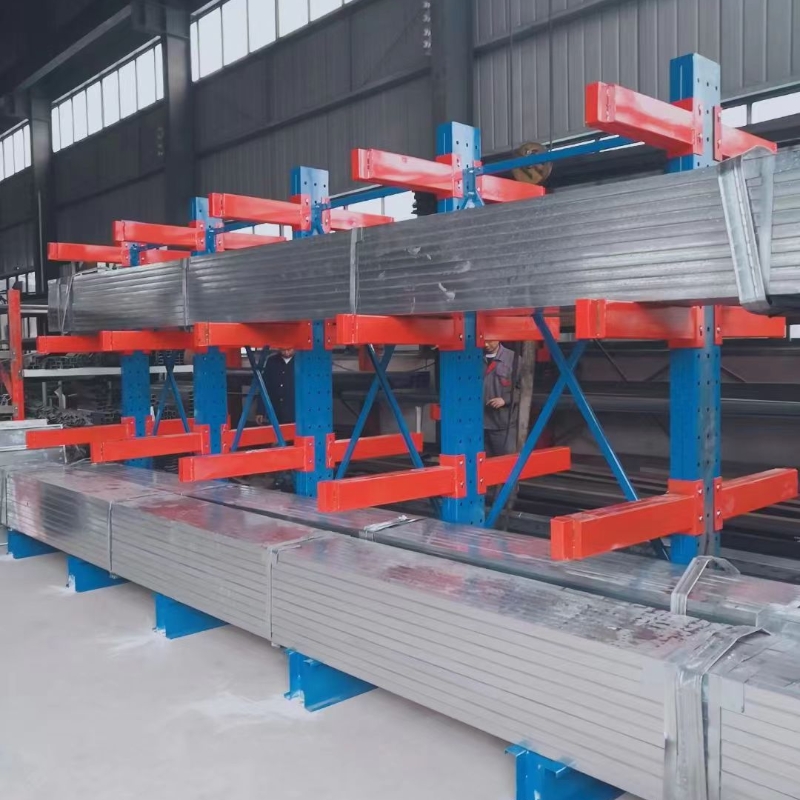

It provides unobstructed horizontal storage space, facilitating safe, efficient, and flexible mechanical loading and unloading of pipes, steel tubes, timber, and metal sheets. Key features and advantages: Unobstructed continuous storage—the design eliminates front uprights, allowing forklifts to move smoothly along the entire length of the rack, thereby significantly reducing handling times for extra-long materials.
Exceptional load-bearing capacity (structural steel option): Manufactured using high-quality, high-strength cold-rolled steel (roll-formed) or heavy-duty structural H-beams.
Customizable system design, with individual cantilever arm load capacities ranging from 500 kg to several tons.
Flexible, adjustable cantilever arms: Arms can be vertically adjusted along the uprights at fixed intervals (typically 75 mm).
Options available for straight arms (suitable for bundled materials and boxed goods) and inclined arms (suitable for pipes and cylindrical objects).
Double-sided configuration: Single-sided racks are suitable for installation against warehouse walls, whereas double-sided racks maximize storage density and allow forklifts to access goods from aisles on both the front and rear sides. Removable anti-slip stops (safety feature): Heavy-duty steel end stops can be fitted to each cantilever arm to prevent cylindrical or roll-shaped items—such as steel pipes, plastic pipes, and carpet rolls—from sliding off.
Technical specifications: Primary material: High-quality Q235B/Q355 cold-rolled or structural steel. Arm length: Options ranging from 600mm to 1800mm (24 to 72 inches); supports standard horizontal configuration or custom upward-tilted angles. Surface finish: High-visibility, anti-corrosion electrostatic powder coating (industrial orange/blue)
Cantilever Arm、Upright Column、Straight / Inclined Arm、Removable Pipe Stop.

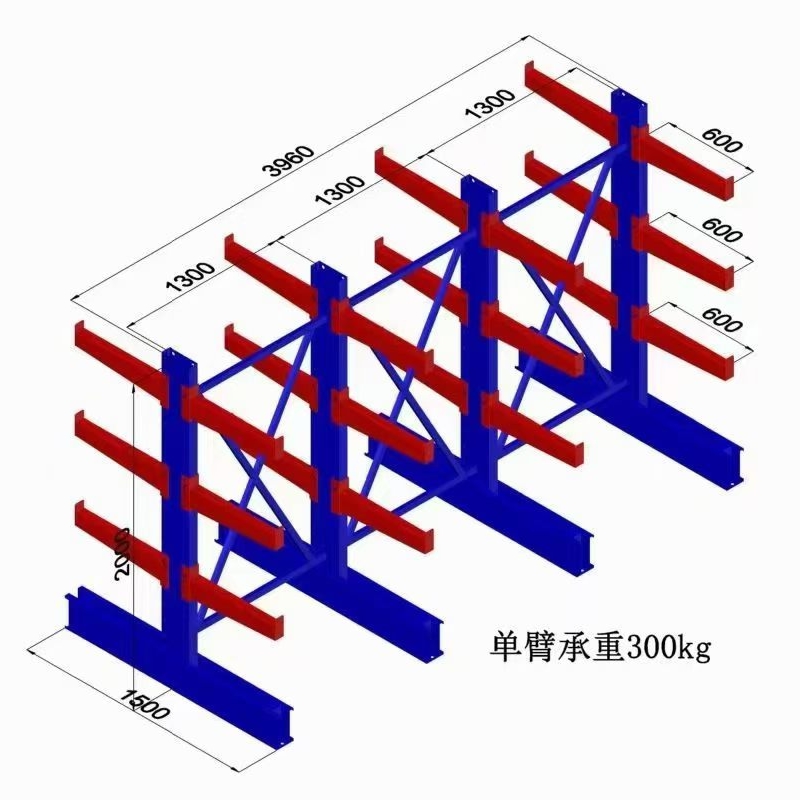

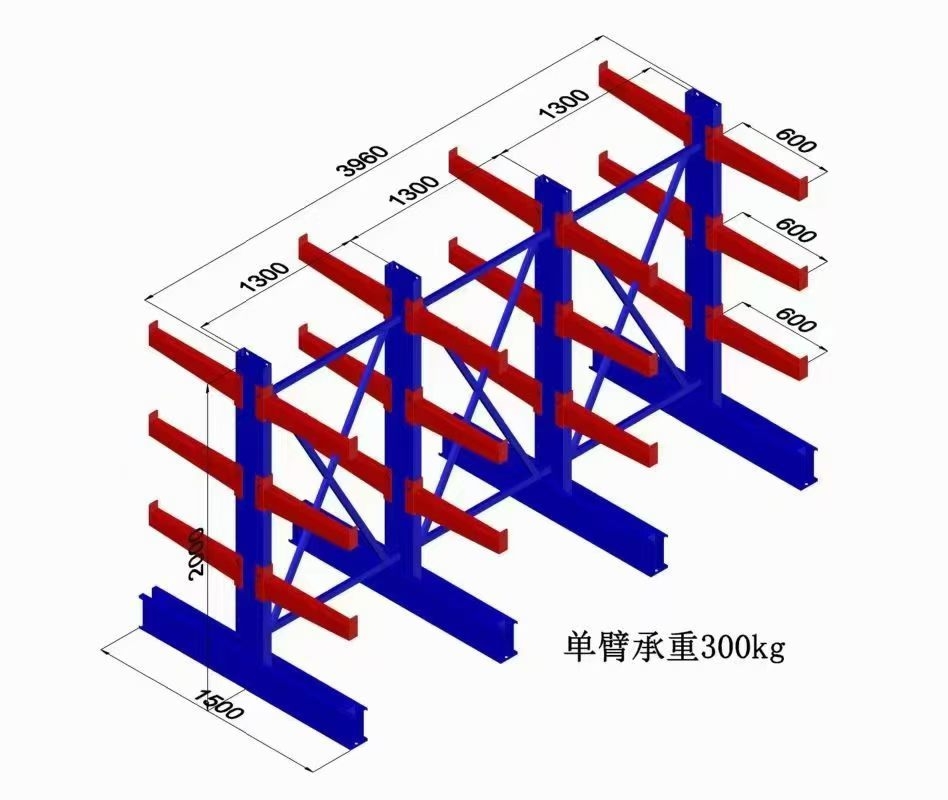

Double-sided cantilever rack specifications: 3960mm long * 1500mm wide * 2000mm wide or customized specifications, cantilever length 600mm, equipped with 3-4 layers, etc.
Material Specs: What specific material are you storing, and what is its total length?
Please feel free to contact us for a price list.
