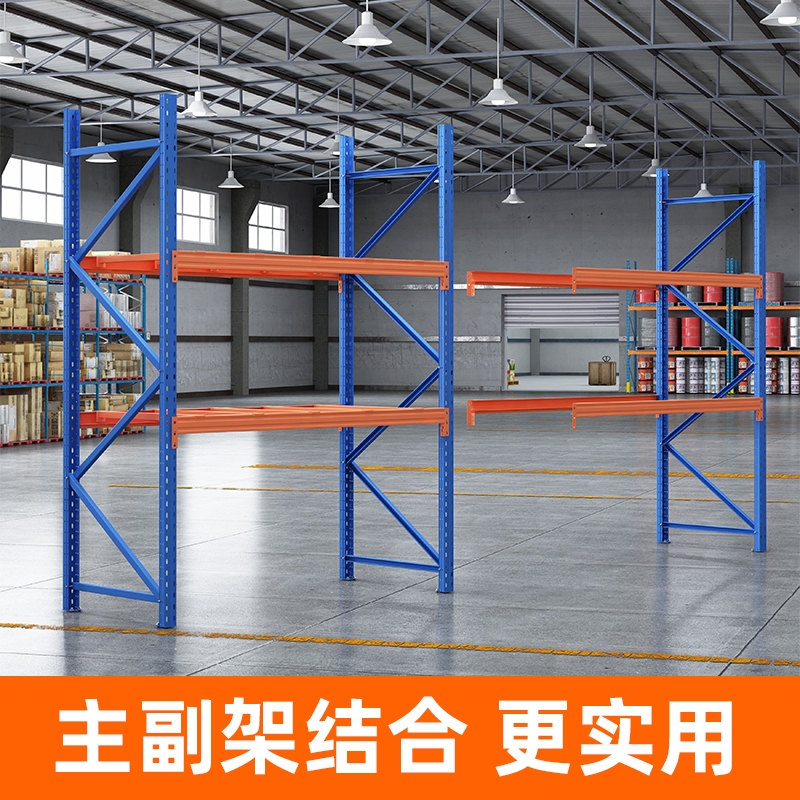

Heavy warehouse shelf Load capacity 1000KG per layer

major characteristic

1, usually the goods through the pallet, storage cages and other unit packaging equipment packed into the shelf storage. The load of each unit is generally within 4000kg, and two units are usually placed on each layer.

2, it is one of the most common and widely used shelves, suitable for the vast majority of warehouses or product goods.

3, with goods arbitrary selection characteristics. Handling machinery such as forklift can reach any place for storage operations, storage operations are convenient and fast! 4, to mechanical handling equipment for storage operations.

5, the unit shelf span is generally within 4m, the depth is within 1.5m, the shelf height of low and high warehouses is generally within 12m, and the shelf height of ultra-high warehouses is generally within 30m (such warehouses are basically automated warehouses, and the total height of the shelves is composed of several columns within 12m).

6, can freely adjust the height of each layer with an integer multiple of 75mm. Heavy-duty (beam type) shelves are generally made of cold-rolled special-shaped steel, the column is made of 80 (90) x60 (70) Ω steel surface punch diamond-shaped holes, the beam is made of 80x50-100x50-120x50-140x50-160x50 welded beam connected to the pendent, and the pallet is generally used instead of the lamina to facilitate forklift handling. Layer load 1 ton to 5 tons of design, surface electrostatic spraying, waterproof, rust and corrosion resistance is stronger, high safety factor, plug-in combination, do not need to use screws and welding, assembly is very convenient, make full use of space area, provide storage capacity.

Industrial shelving, warehouse metal storage racks, anti-corrosion long-span shelving

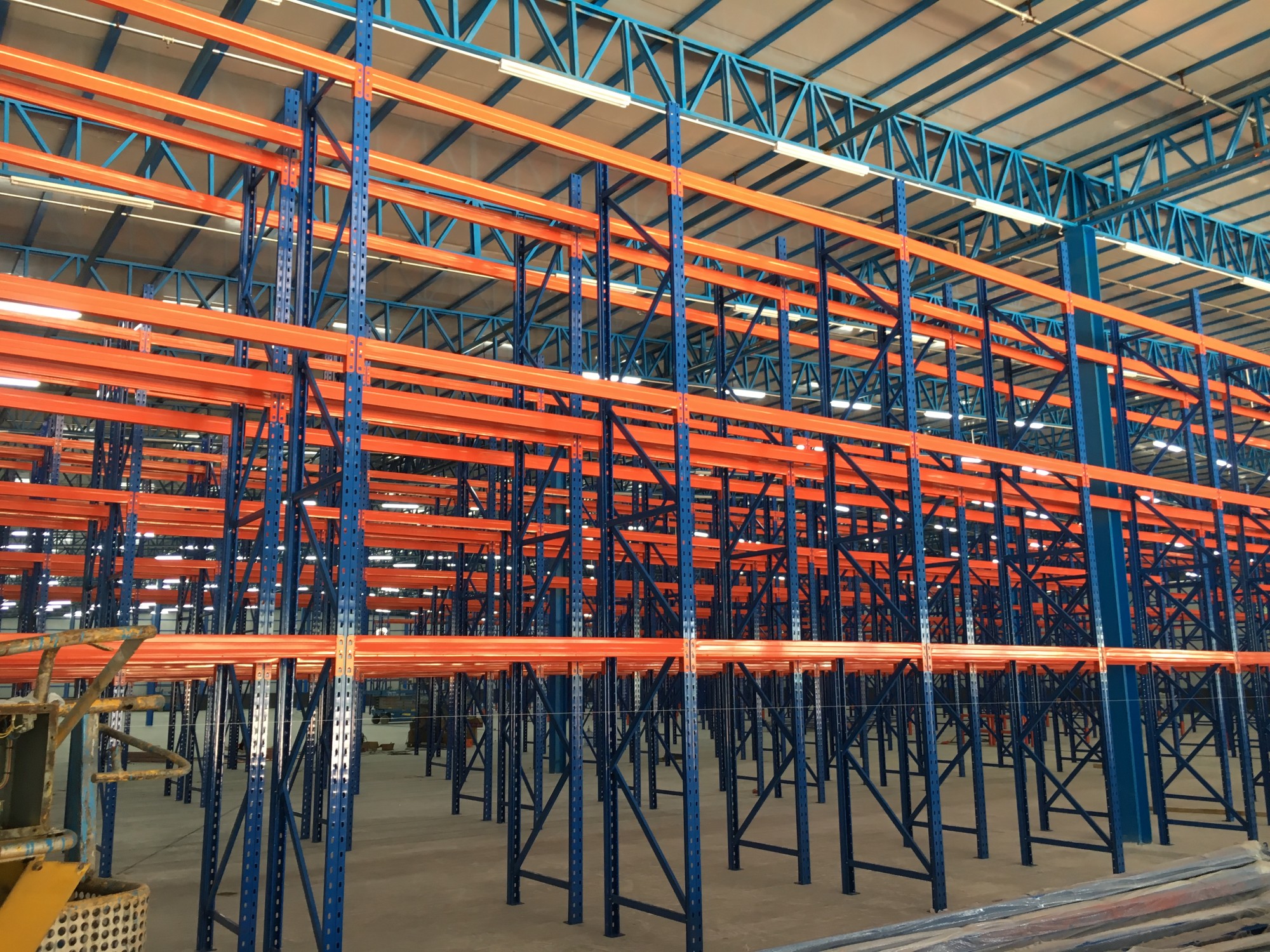

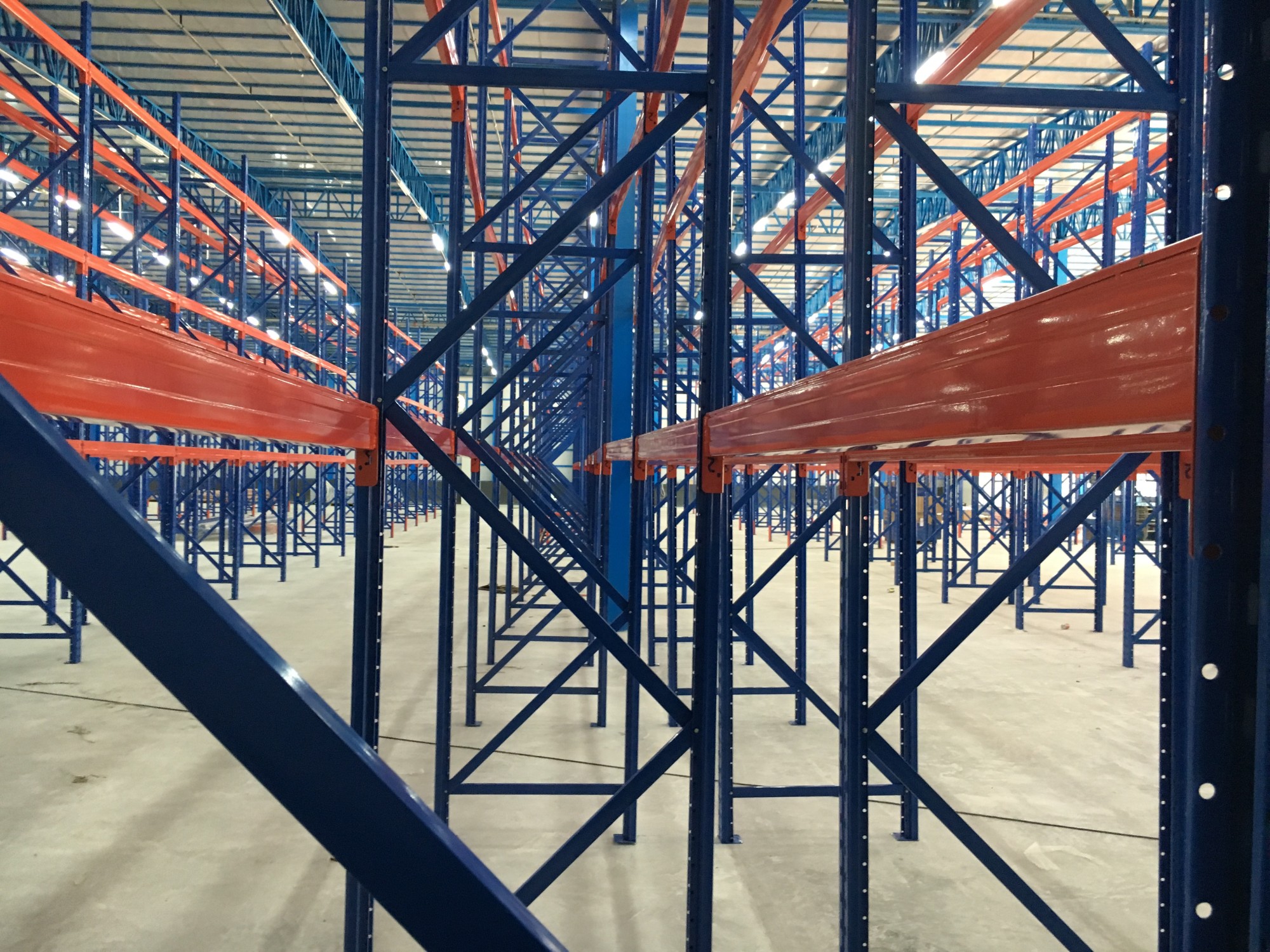

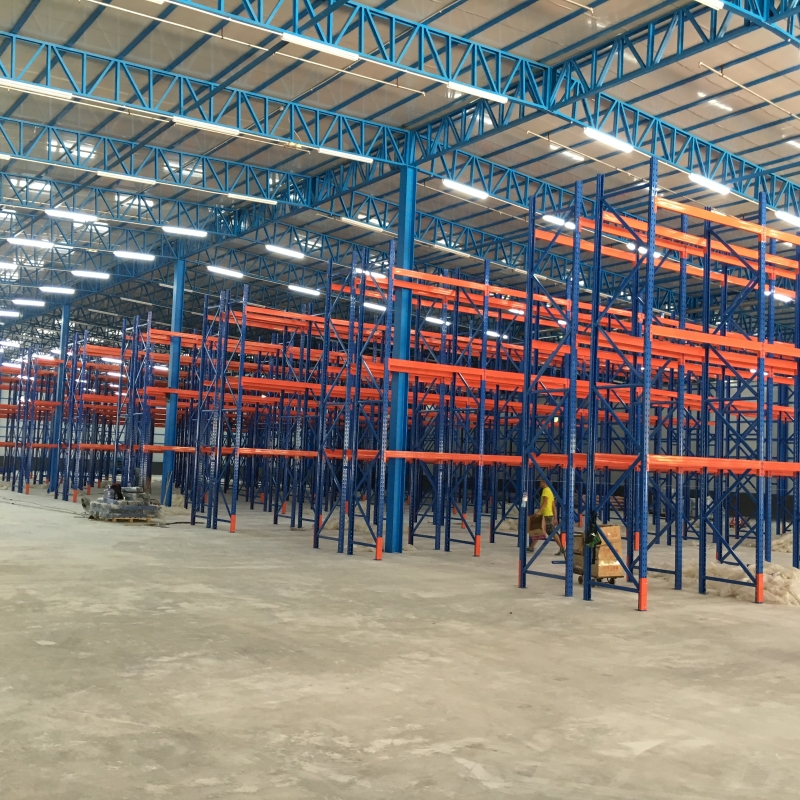

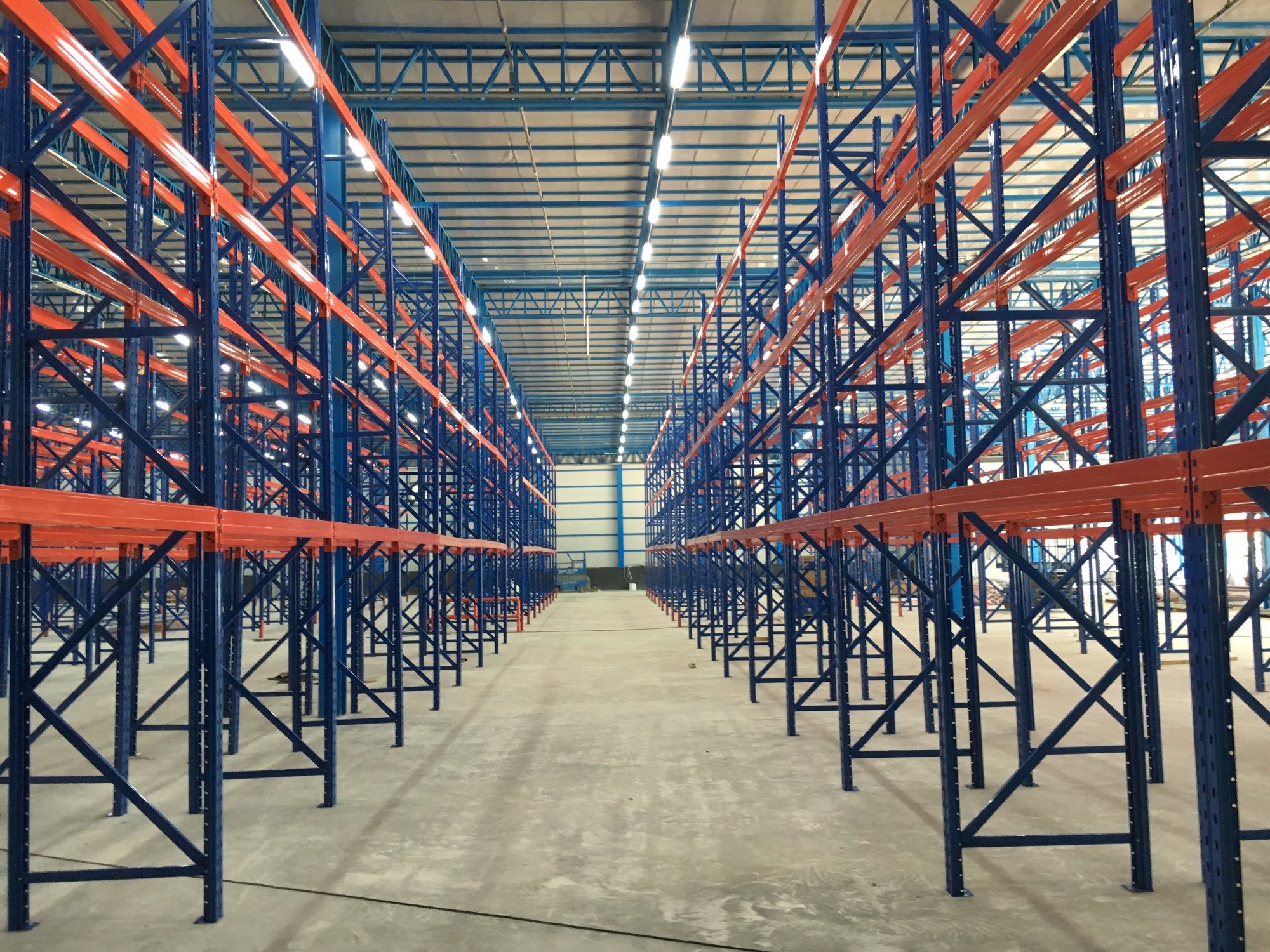

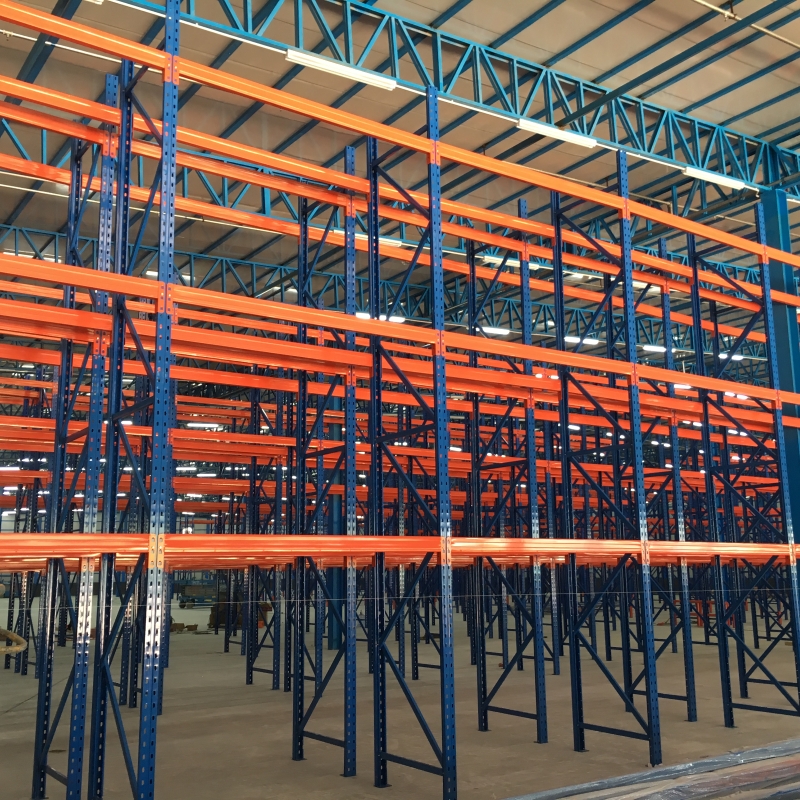

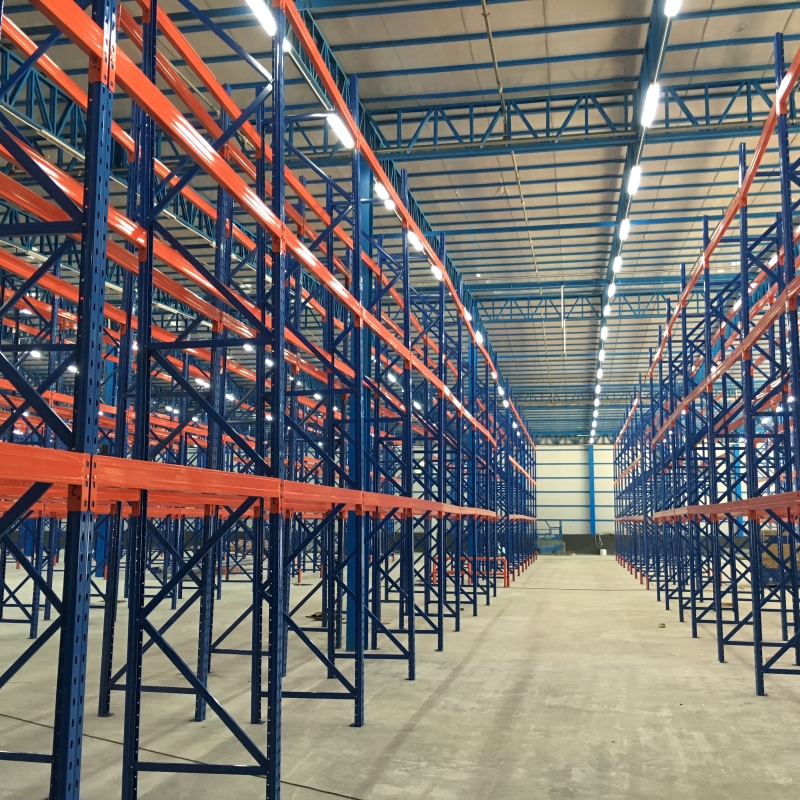

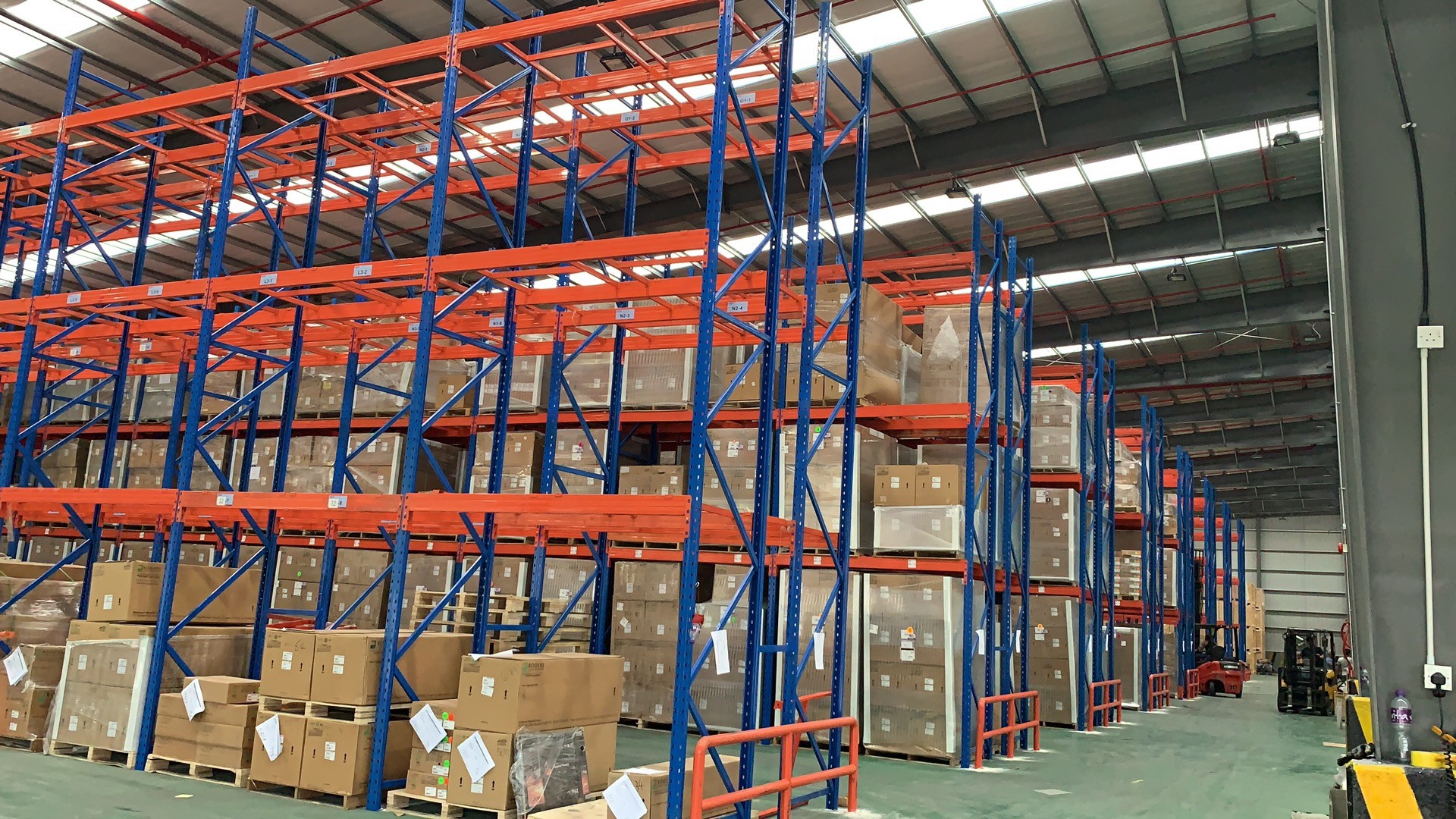

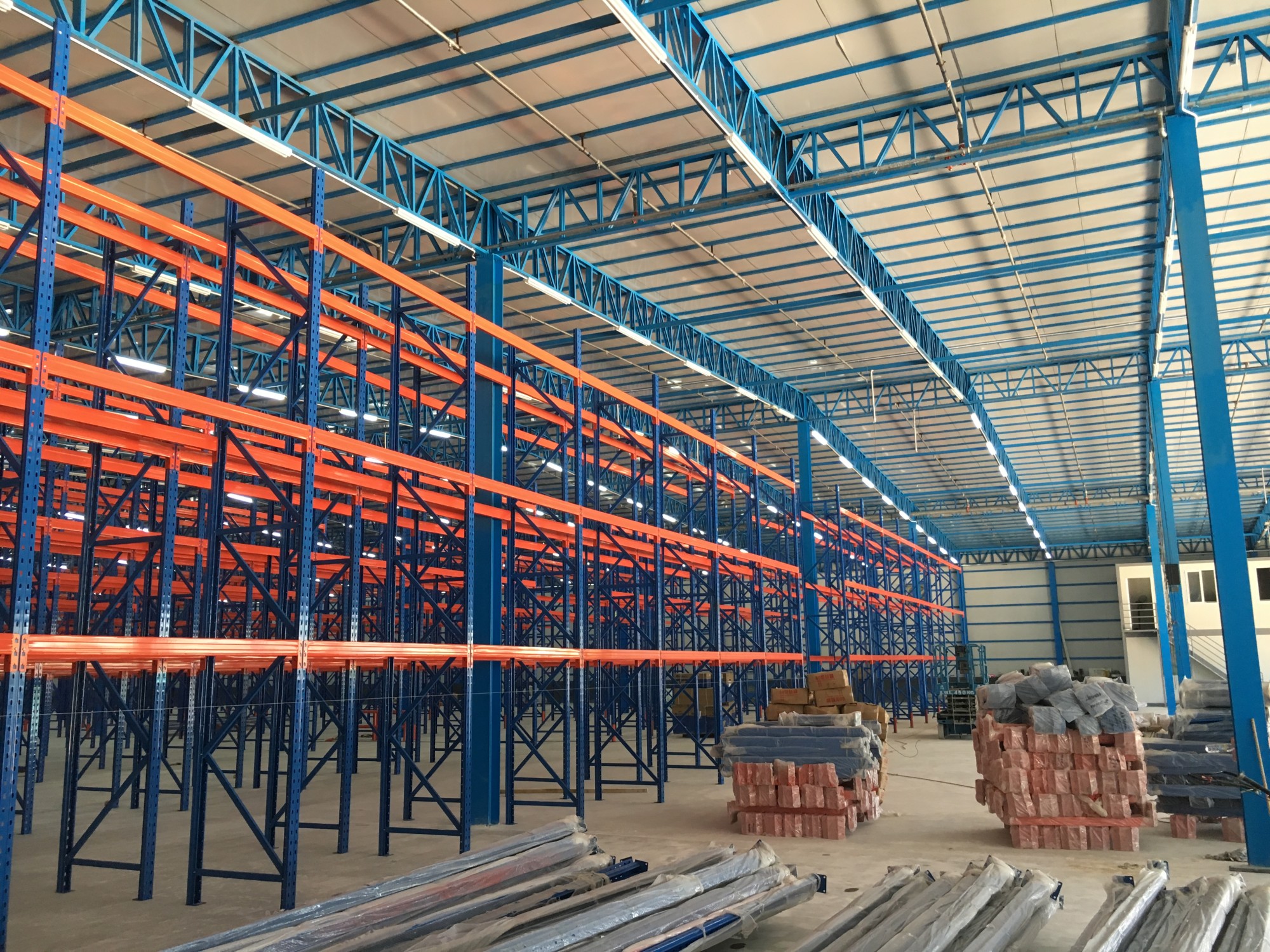

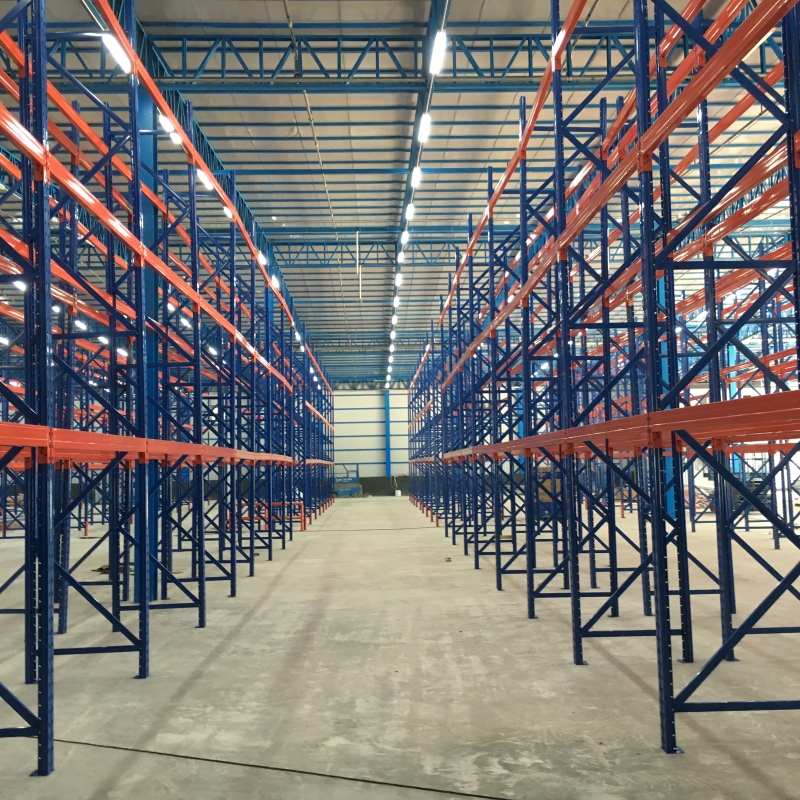

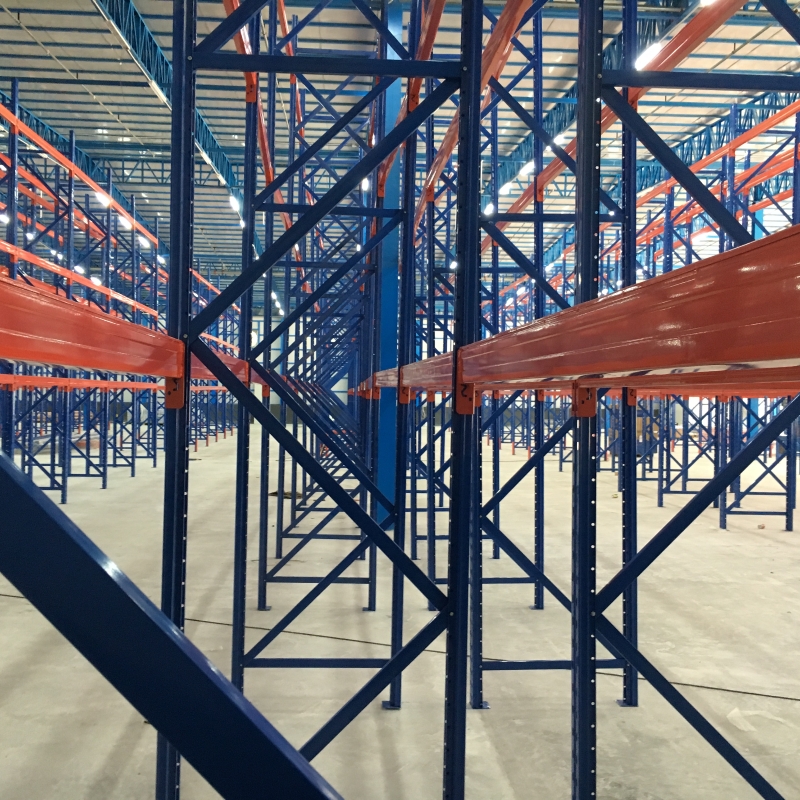

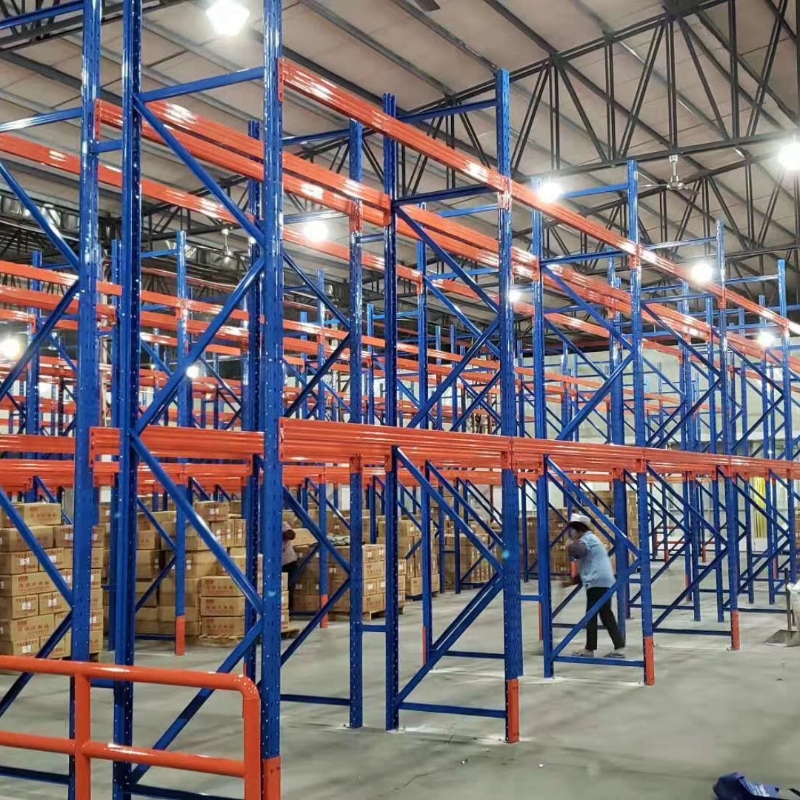

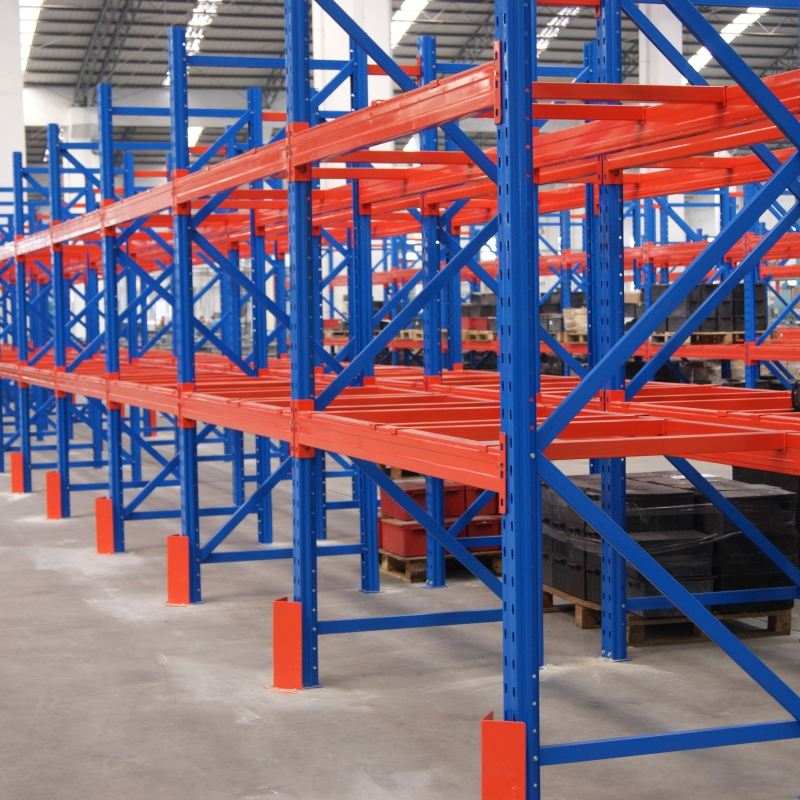

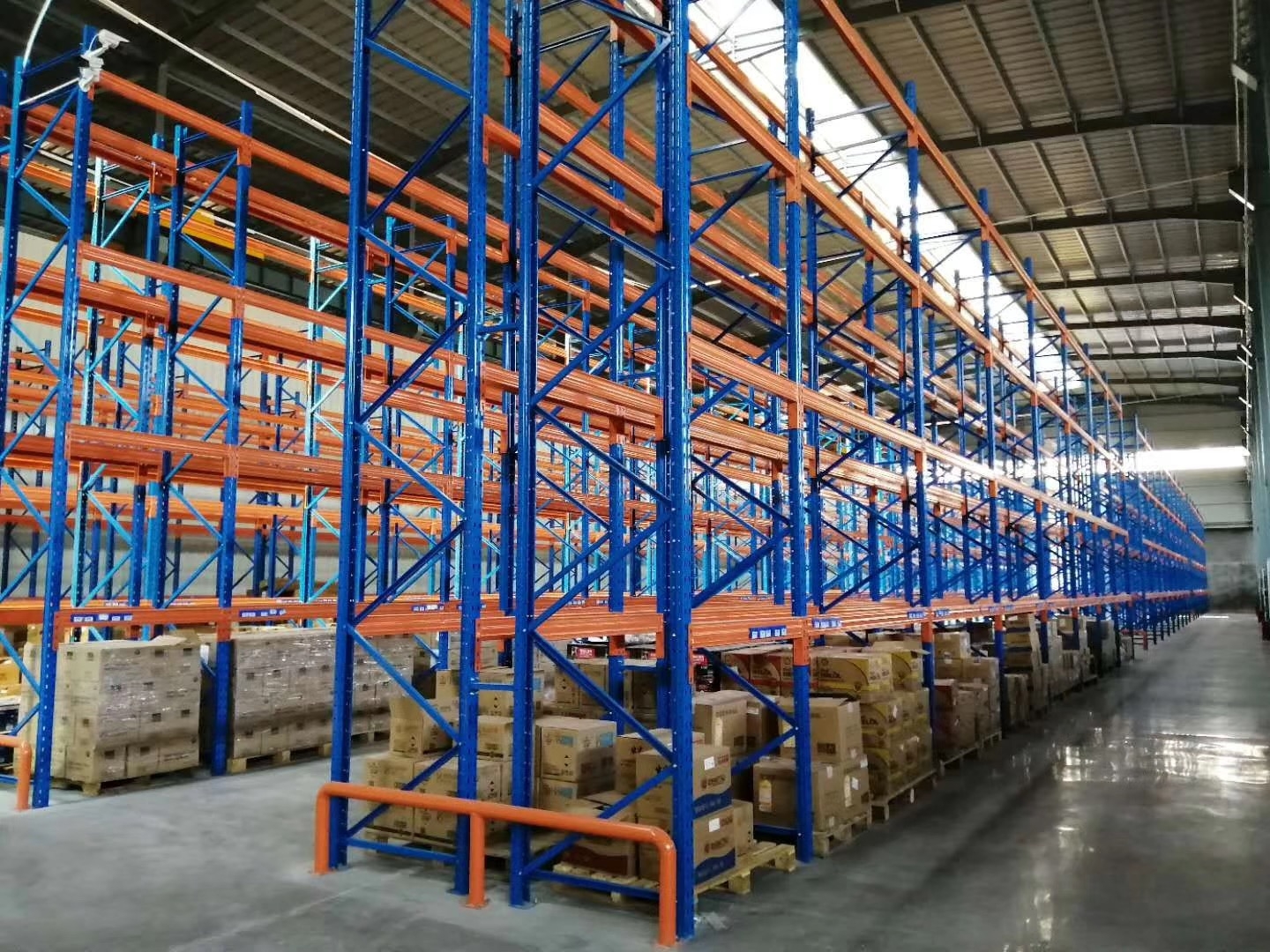

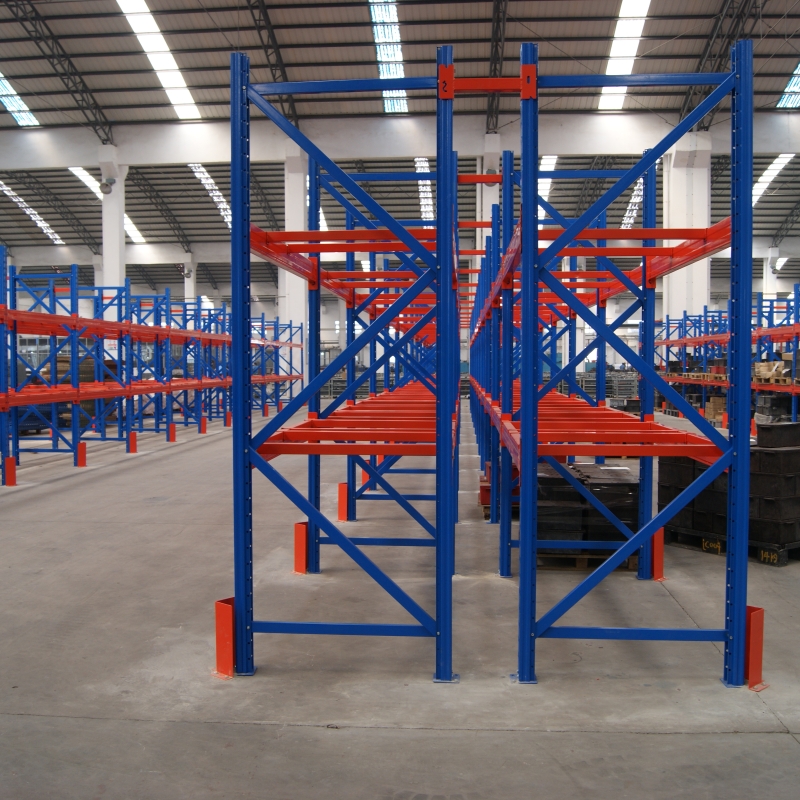

Heavy-duty warehouse shelf installation site picture is as follows:
