Folding tire rack (industrial tire rack)

Steel stackable folding storage racks are specially designed to store tires for cars, SUVs, trucks, and buses. They belong to the category of customized smart racks and are suitable for batch turnover storage in tire shops, auto parts factories, tire warehouses, and logistics transfer warehouses.

1. Structure and material

Main material: Q235 thickened square tube is fully welded, and the whole is electrostatically sprayed (orange-red regular color). In humid warehouses, hot-dip galvanizing can be used to prevent rust;

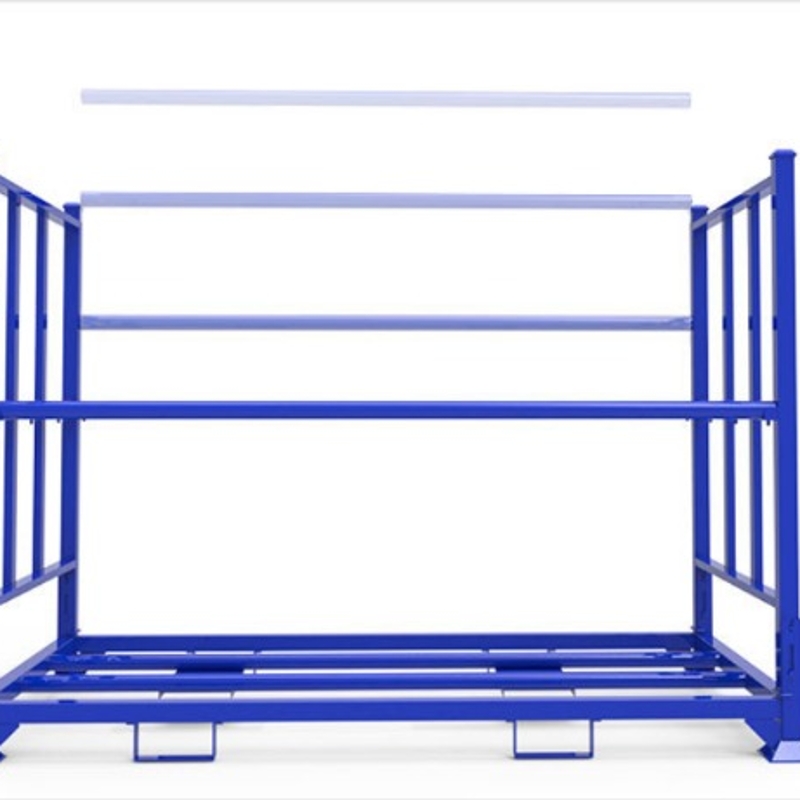

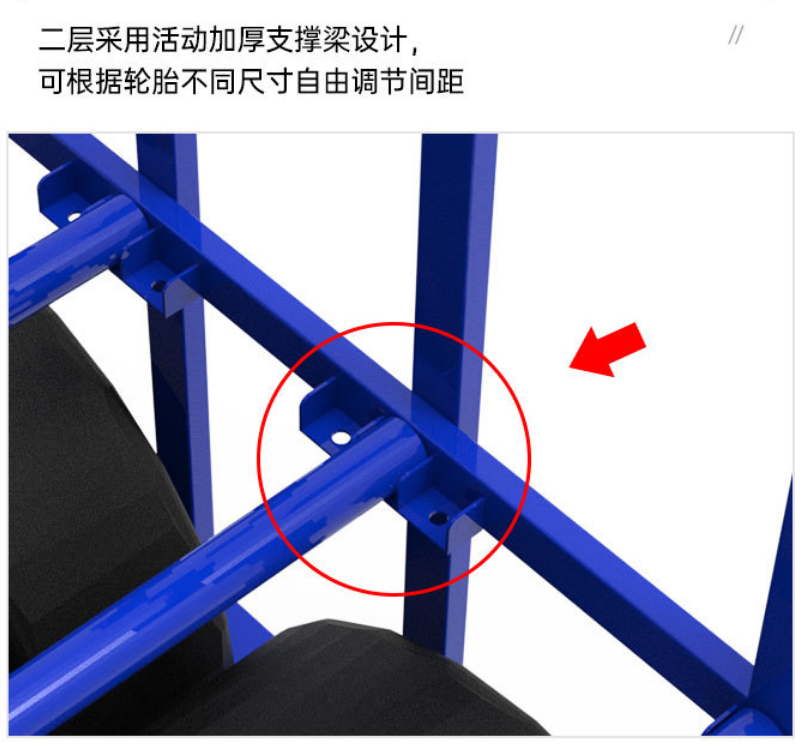

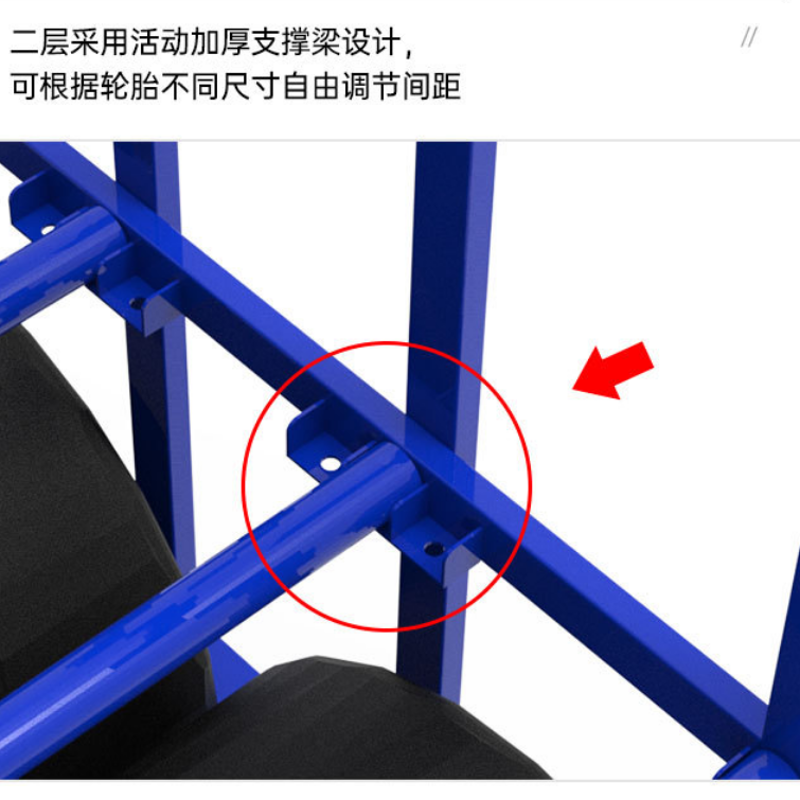

Composition: anti-slip steel base + two sets of left and right foldable side frames + snap locks, some styles have layered support bars;

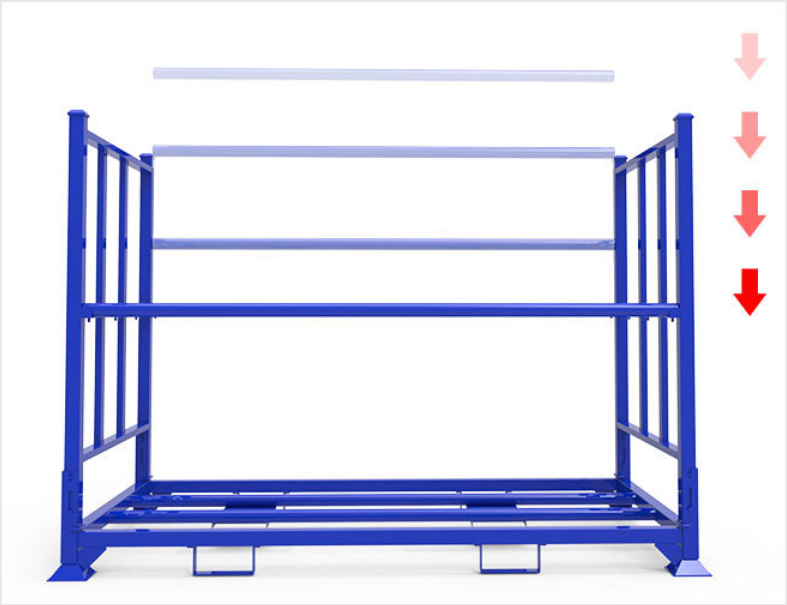

Operation: No tools are required, just raise the side frame upwards and clamp it for use; press the buckle when it is idle, and the side frame will be flattened inward for storage.

2. Load-bearing and stacking specifications

Conventional single frame load: 800–1100kg, heavy-duty model can reach 1500kg;

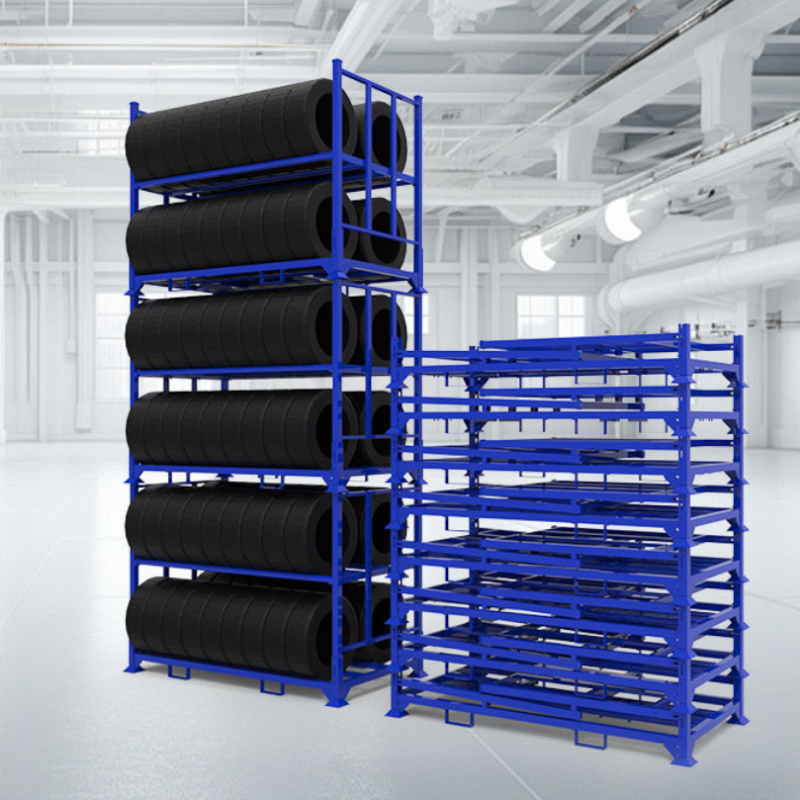

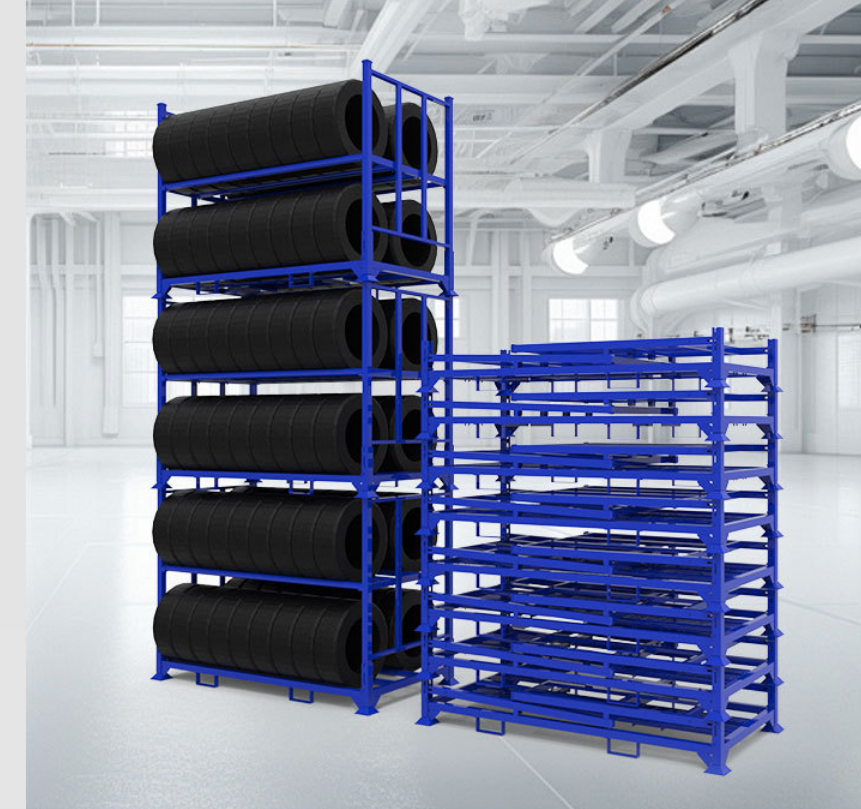

Fully loaded deployment: 3-5 layers can be stacked upwards, and the forklift can transfer the entire product;

Empty folding: flat and thin stacking, more than 20 pieces can be stacked at one time, which greatly saves return transportation and off-season storage area;

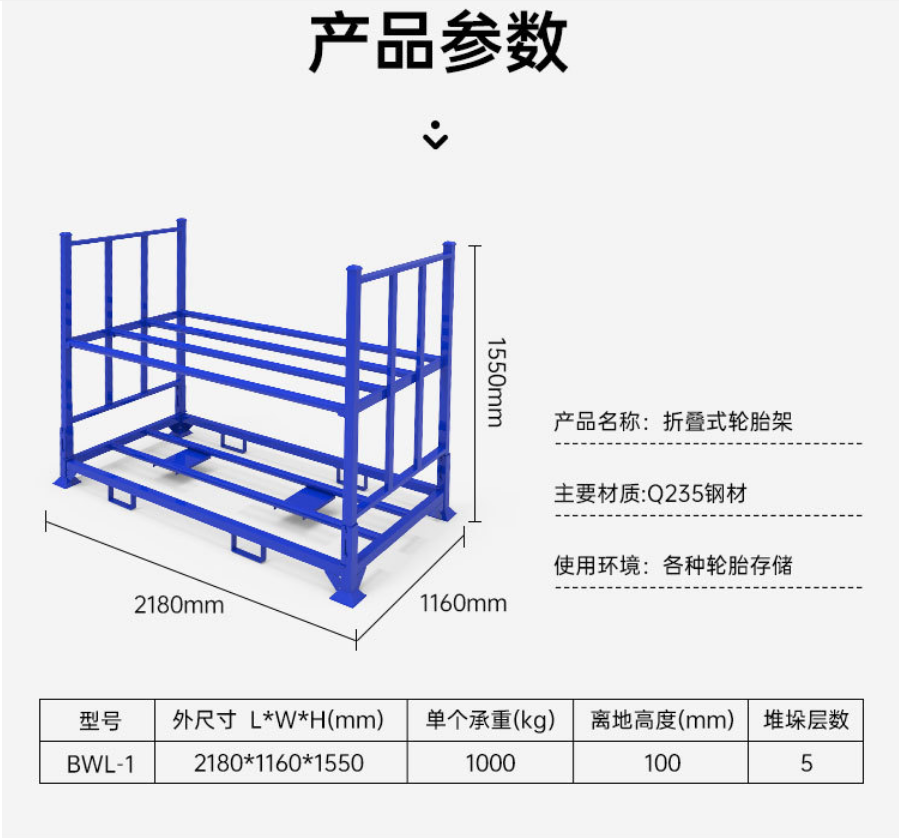

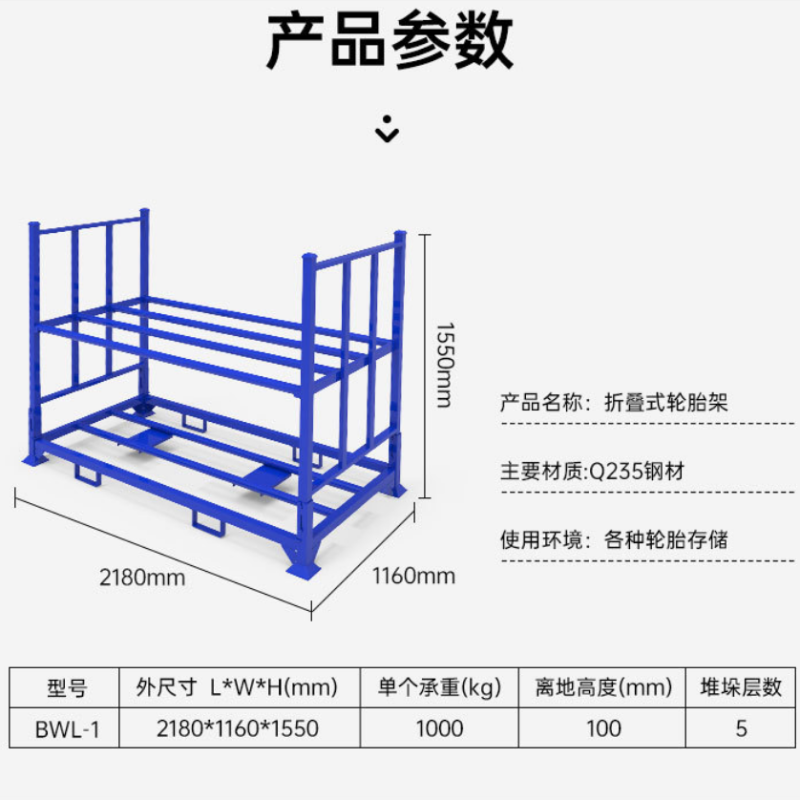

Mainstream size: 2180*1160*1550, the size can be changed according to the tire outer diameter (car tire/truck tire) length, width and height.

3. Core advantages

Regular tire protection: layered and diagonally arranged, the tire can be upright or flat to avoid extrusion deformation and tread stress aging;

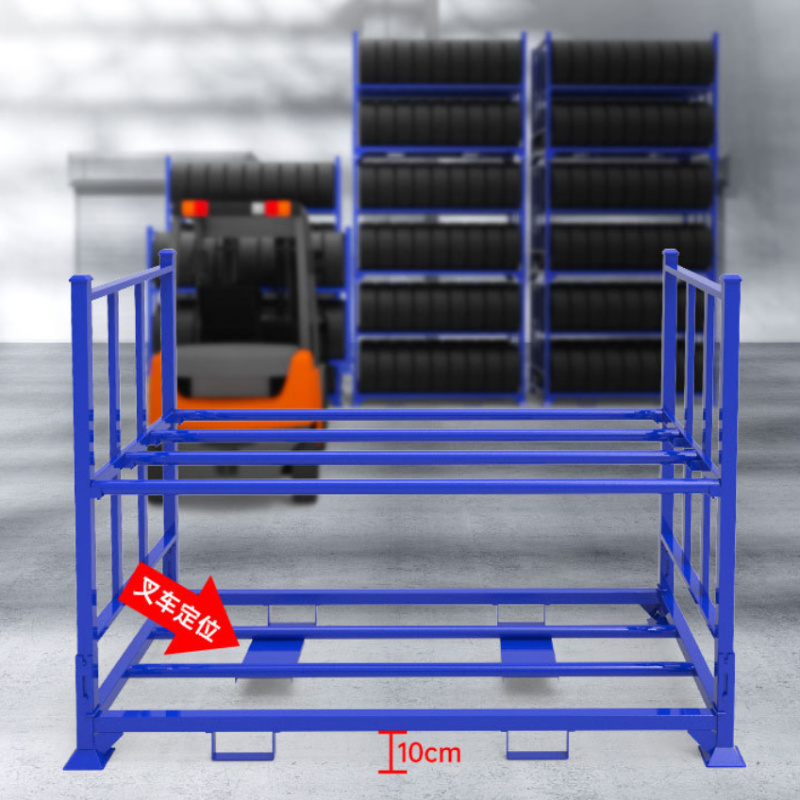

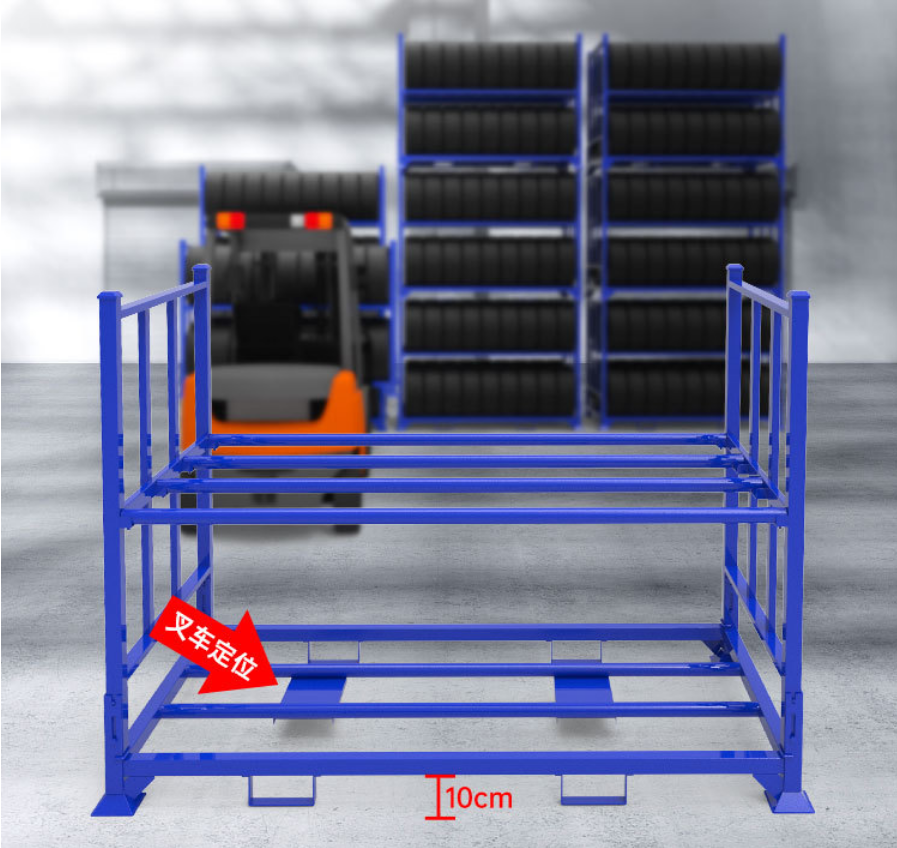

Integrated transportation: Forklift fork holes are reserved in the base, and the entire frame can be transported by ground cattle or electric forklifts without the need to move the tires one by one;

Flexible space: The stacking capacity can be expanded during peak seasons, and the folded space during off-season only takes up 1/5 of the original space. It is suitable for merchants with large seasonal inventory fluctuations;

Durable and resistant: The hinge is not easily deformed after repeated opening and closing, is wear-resistant and rust-proof, and has a long-term factory heavy-duty service life of 8–10 years;

Convenient inventory: The open frame makes inventory inventory clear at a glance, and accessing tires is quick and efficient.

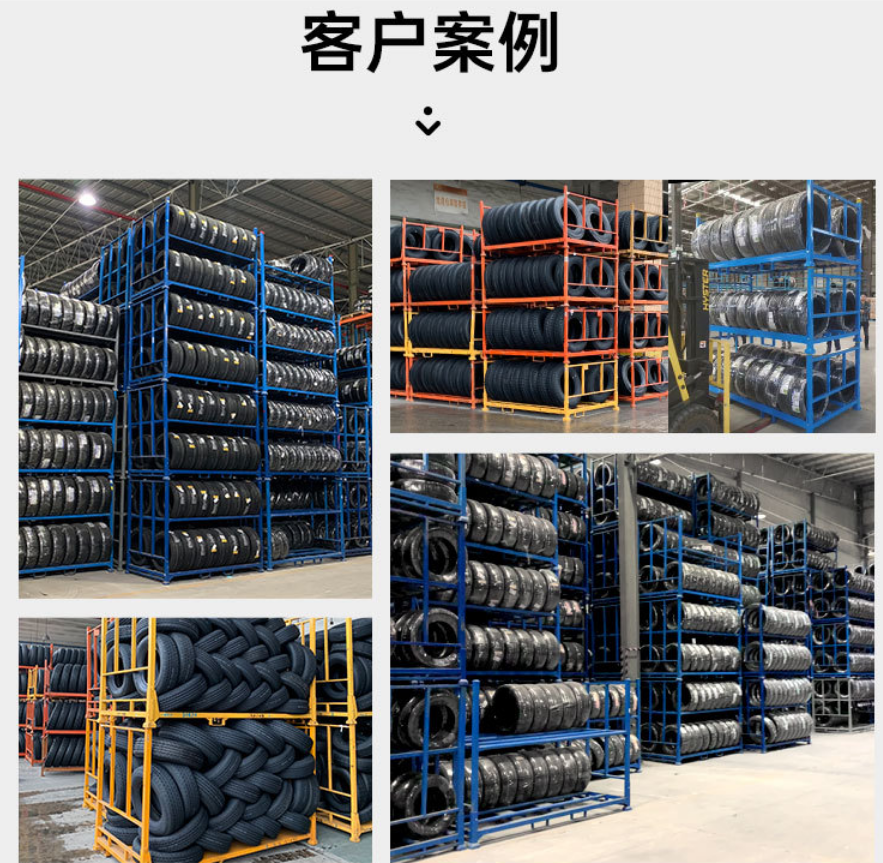

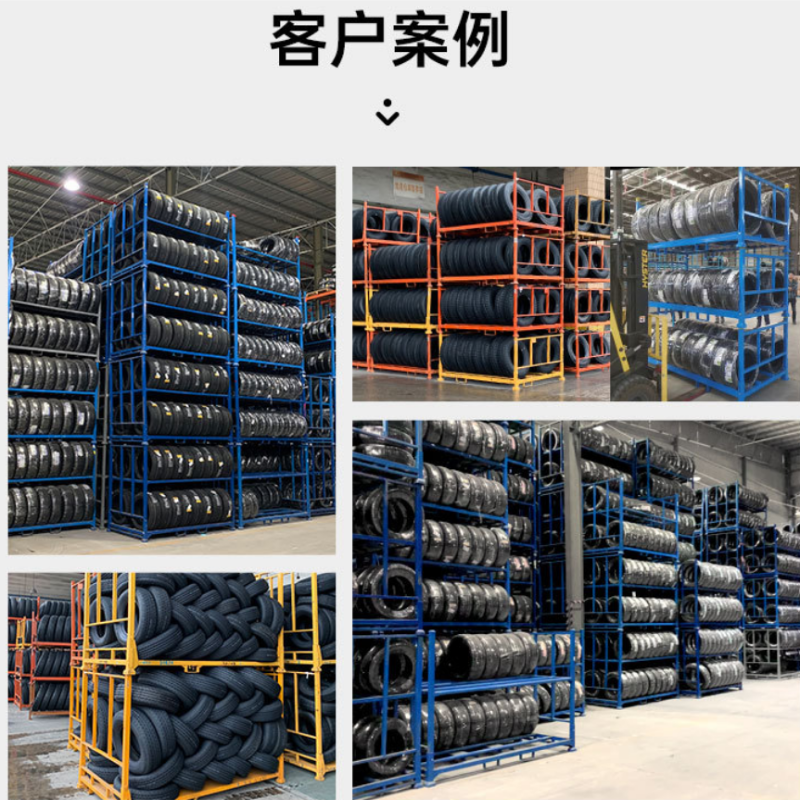

4. Applicable scenarios

Large tire storage center, tire brand agent warehouse

Auto parts factory, truck repair station, 4S shop parts warehouse

Container export tire packaging and transportation, off-site allocation and turnover

Bulk spare tire storage for large fleets and bus companies

5. Subdivided styles

Three-layer universal model: for storing family cars and SUV tires, most commonly used in stores;

Heavy-duty widened model: suitable for buses, heavy trucks, and engineering large-size tires;

Simple two-layer model: small auto repair shops and stores stock small quantities;

Reinforced model with fence: long-distance logistics transfer to prevent tires from slipping during transportation.
